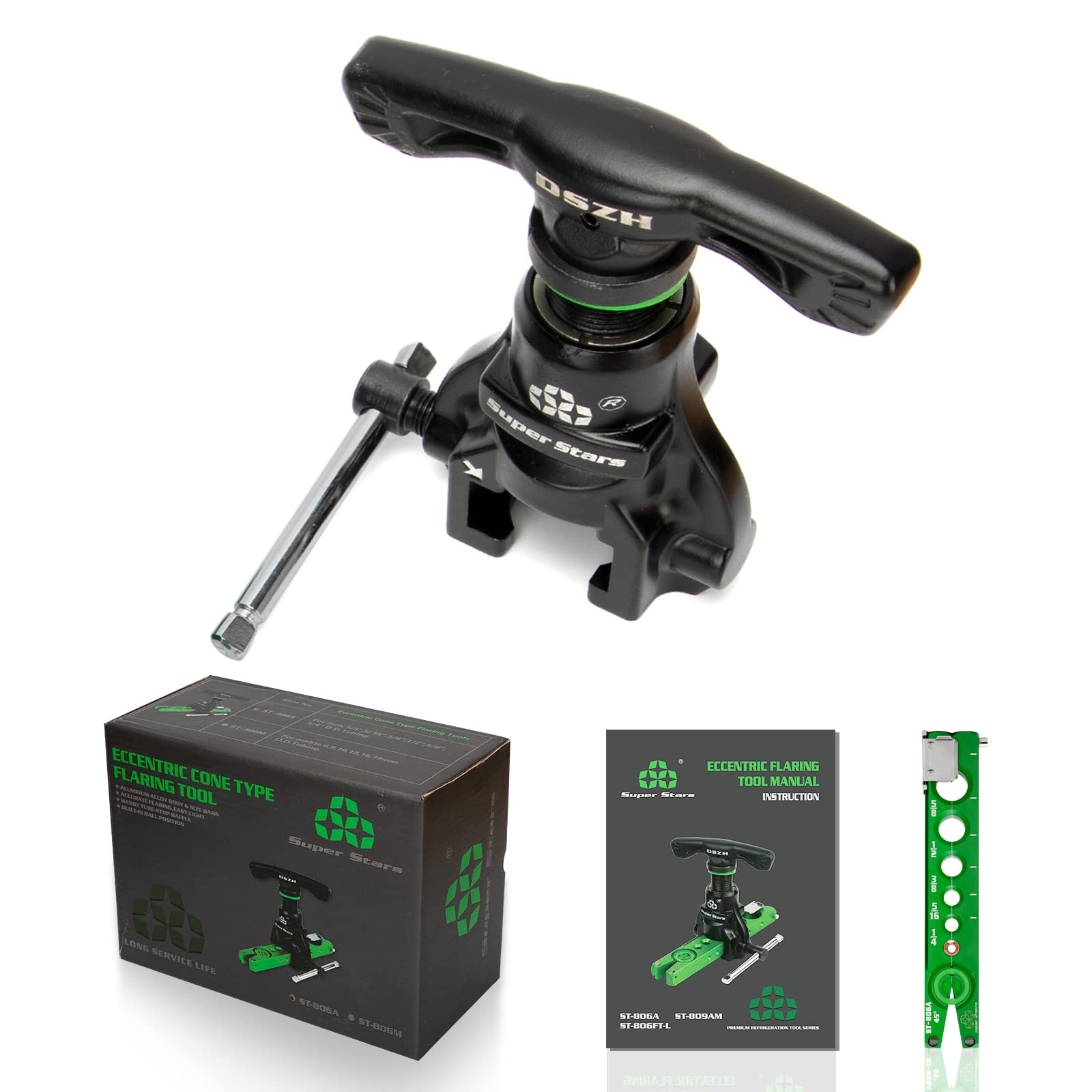

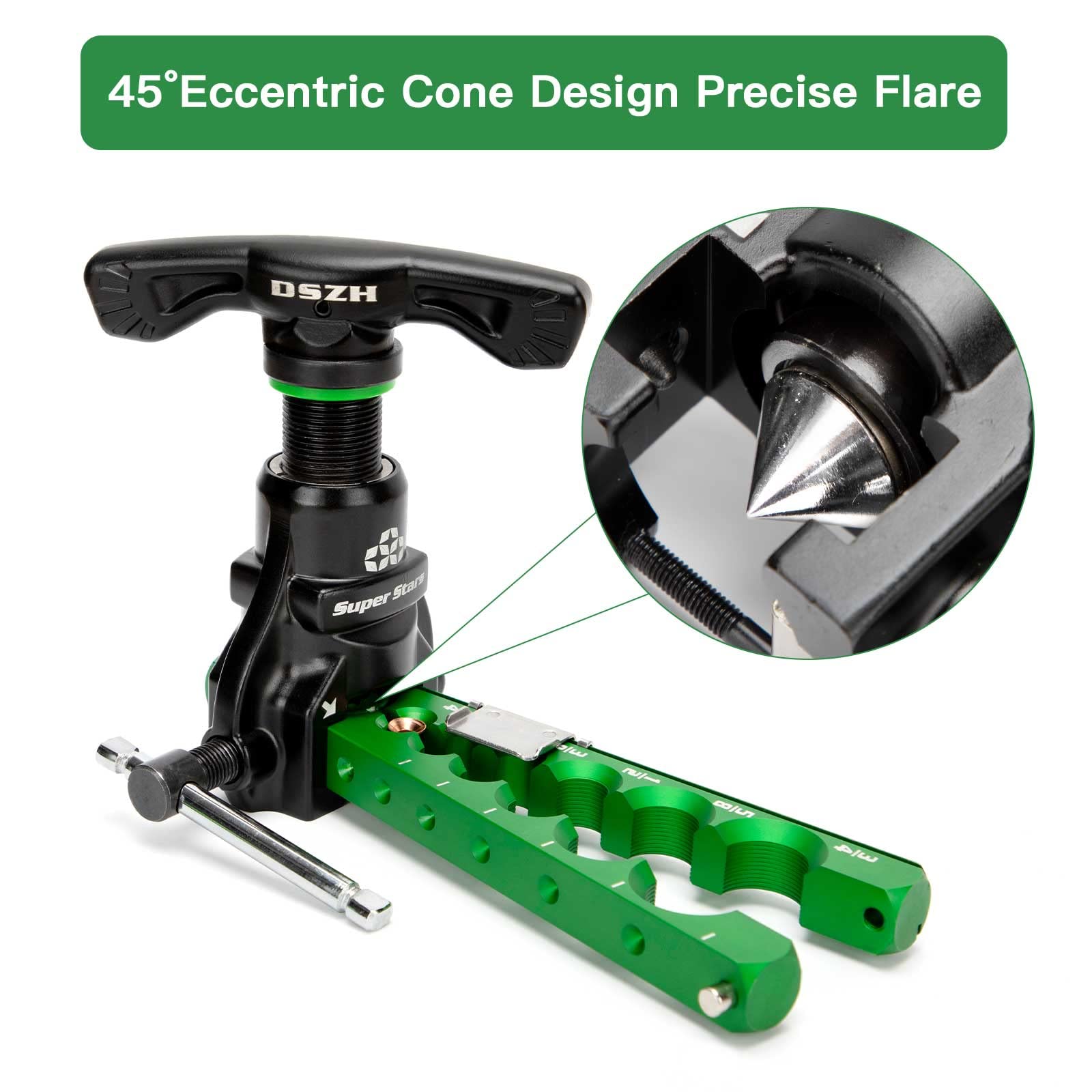

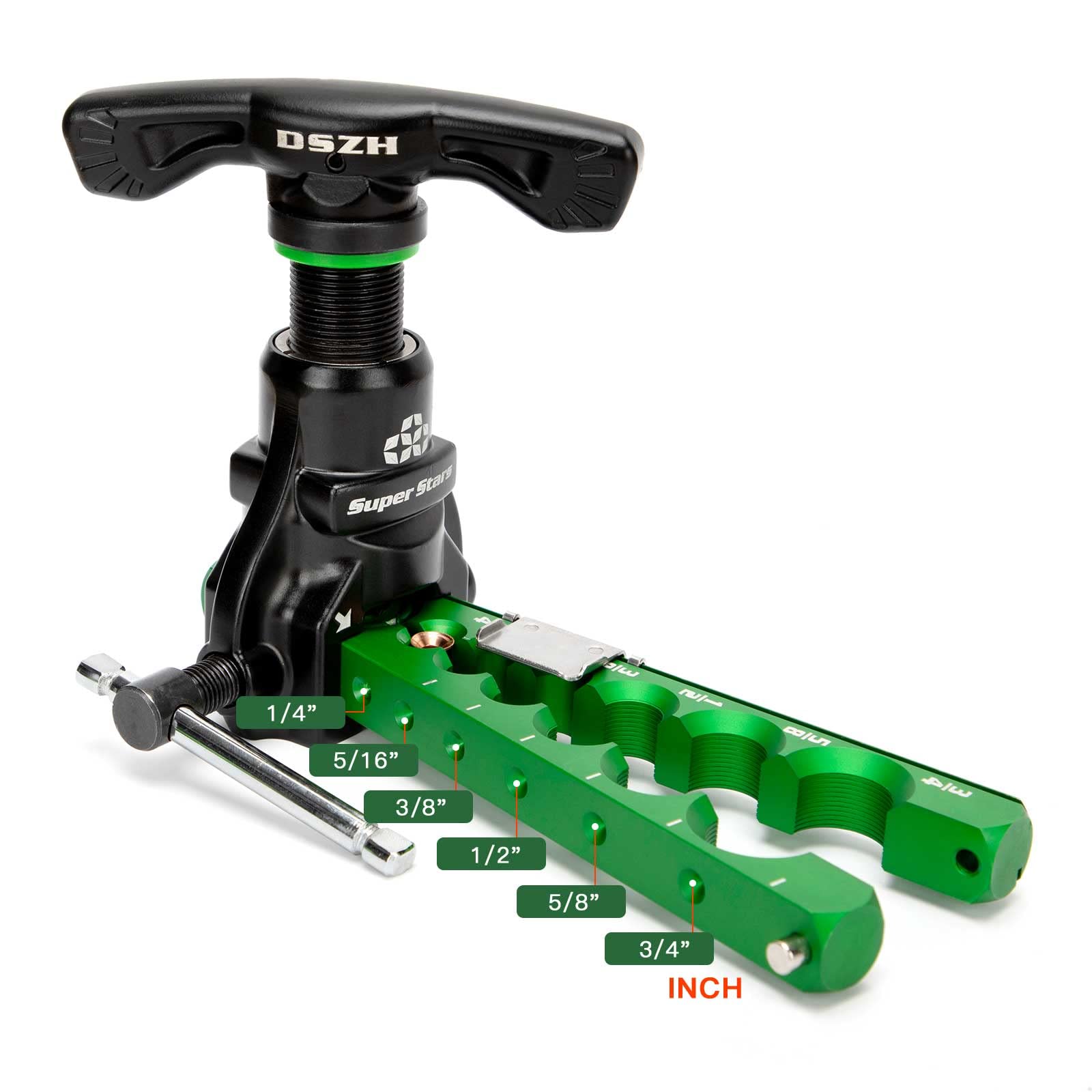

The accuracy eccentric cone flaring tool produces 45 Degree flares in soft copper, brass, aluminum or stainless steel pipes. Widely used in HVAC, air conditioners, air heaters, refrigerators maintenance, etc. Our HVAC Flaring Tool Kit comes with 2 types of flaring clamps applicable pipe O.D.Inch: 1/4", 5/16", 3/8", 1/2", 5/8", 3/4" Metric: 6mm, 9mm, 10mm 12mm, 16mm, 19mm). The eccentric flaring cone provides for easy clamping and removal of tubing, Large feed screw handle for smooth turning with little effort (NOTE: It will only do single flare - not double flare!) The flare tool is designed with a clutch in the rotating handle, which will automatically disconnect when the flaring is completed. 1.Cutting tubes. 2.Remove burrs. 3.put a nut on tubes. 4.Loose position rod before using and loose the handle up to the top,place the bar into black for flaring. 5.Insert flaring bar with spring bar into block with the hole of one end of the arrow. 6.Open the clamp,slide the copper limit piece to required size of pipe clamping hole,put copper and make the end of the pipe touch the copper limit piece. 7.Insert clamp with tube in yoke until the ball on clamp get stuck in the correct size ball fixing position,meanwhile the yoke edge line will aim to the mark line on clamp.Then tighten the fixing rod. 8.Rotate the handle in clockwise,keep rotating the handle 2-3 round after clutch is seperated will make the flare more smooth. 9.After flaring work finished,rorate the handle to retract the eccentric cone to the top, release the fixing rod,open the clamp and take the tube. Eccentric Cone The eccentric design makeks the flaring more precise and efficient. Clutch Design The flare tool is designed with a clutch in the rotating handle, which will automatically disconnect when the flaring is completed. Limit piece After inserting the copper tube, the length of the flared tube can be precisely limited by the limit piece, which is more efficient and convenient than measuring by eyes only. Package includes 1x Flaring Tool, 1x Clamp 1x Manual Book 1x Retail package
