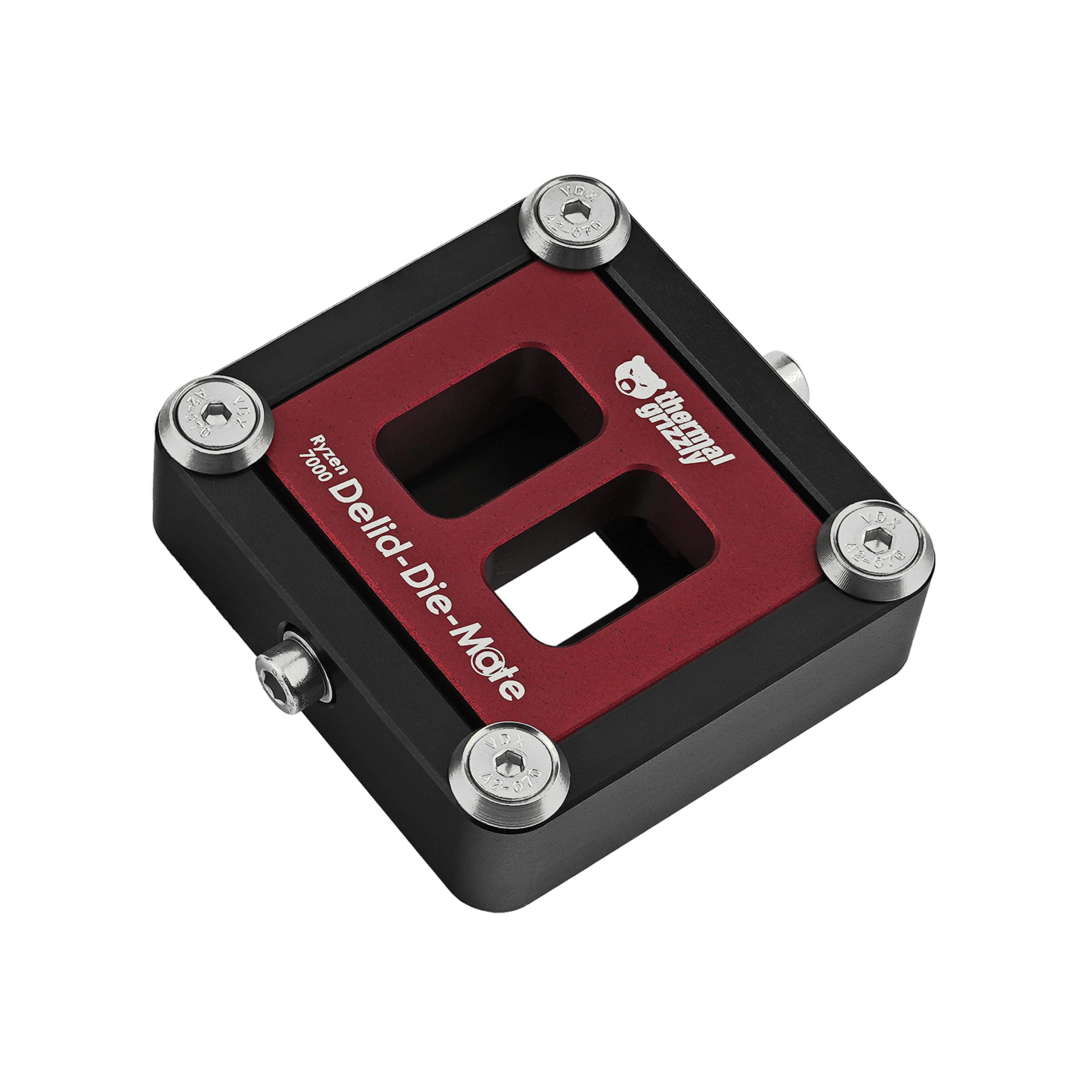

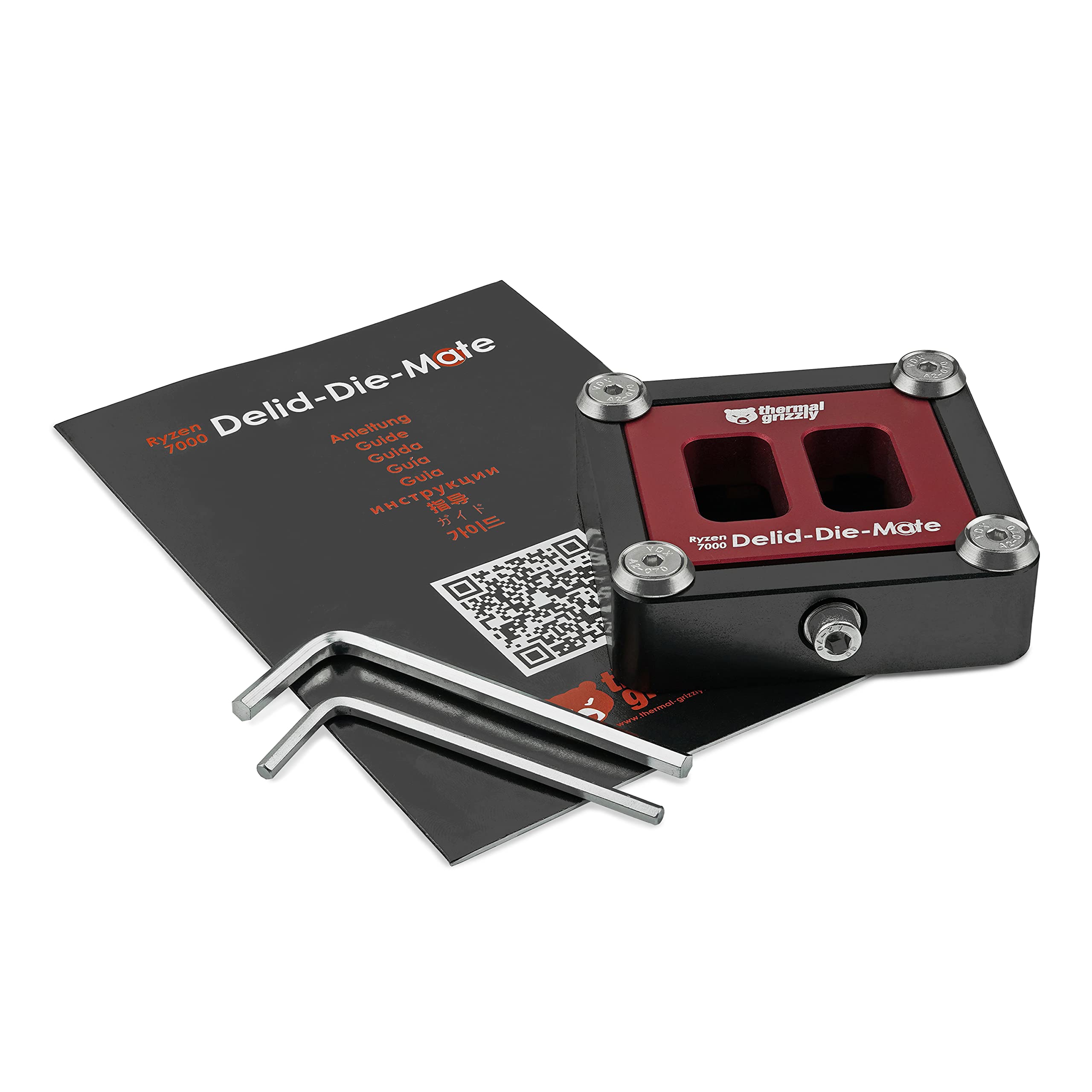

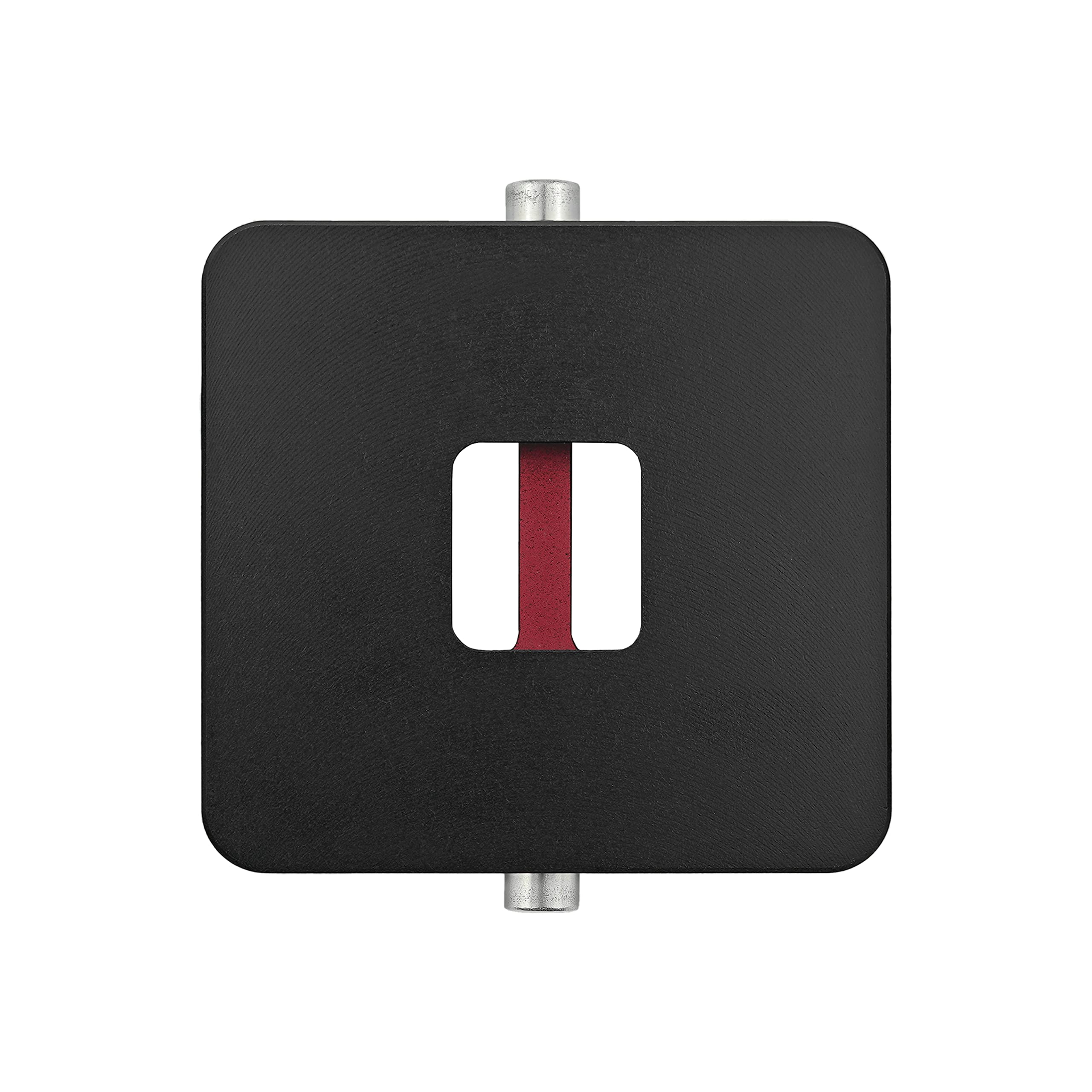

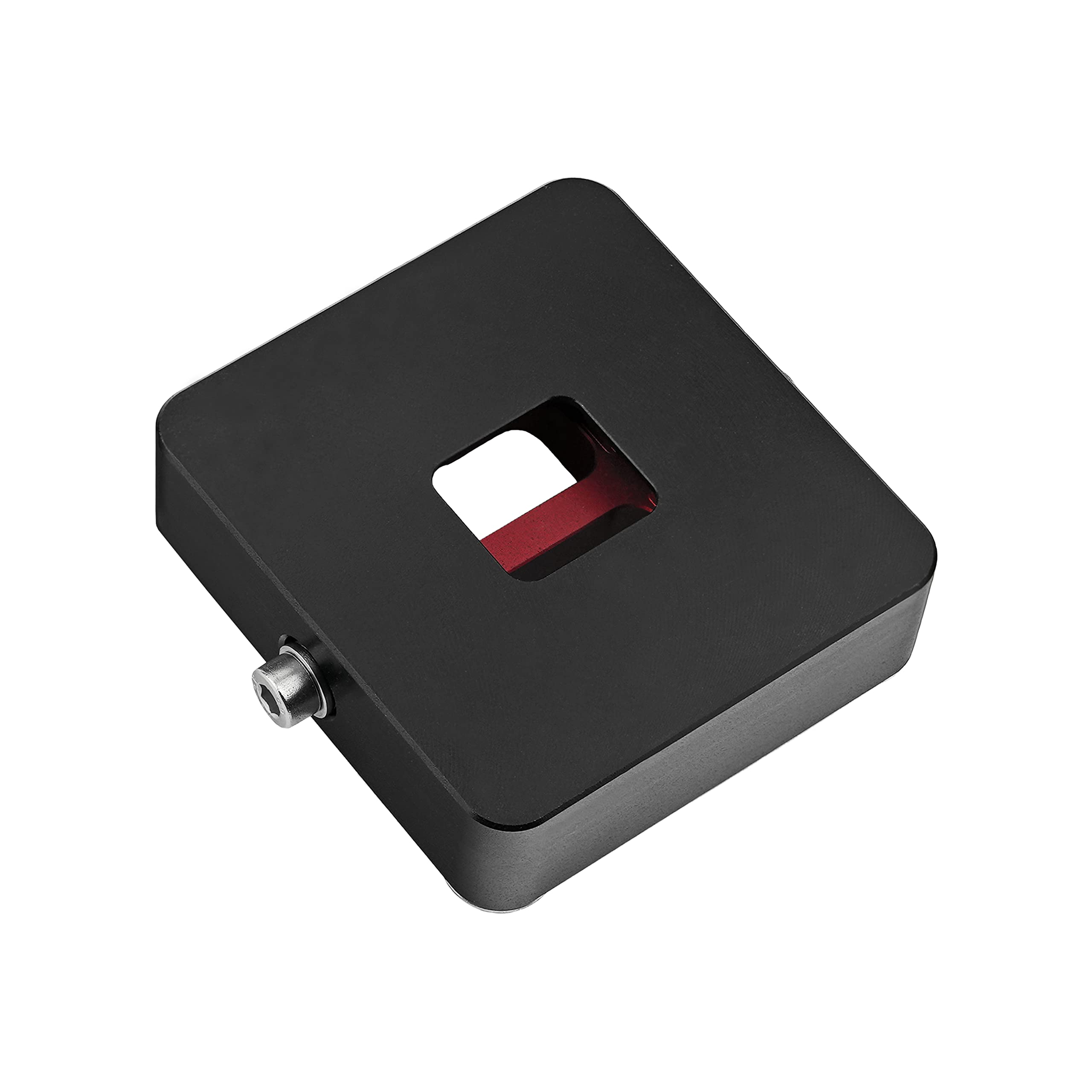

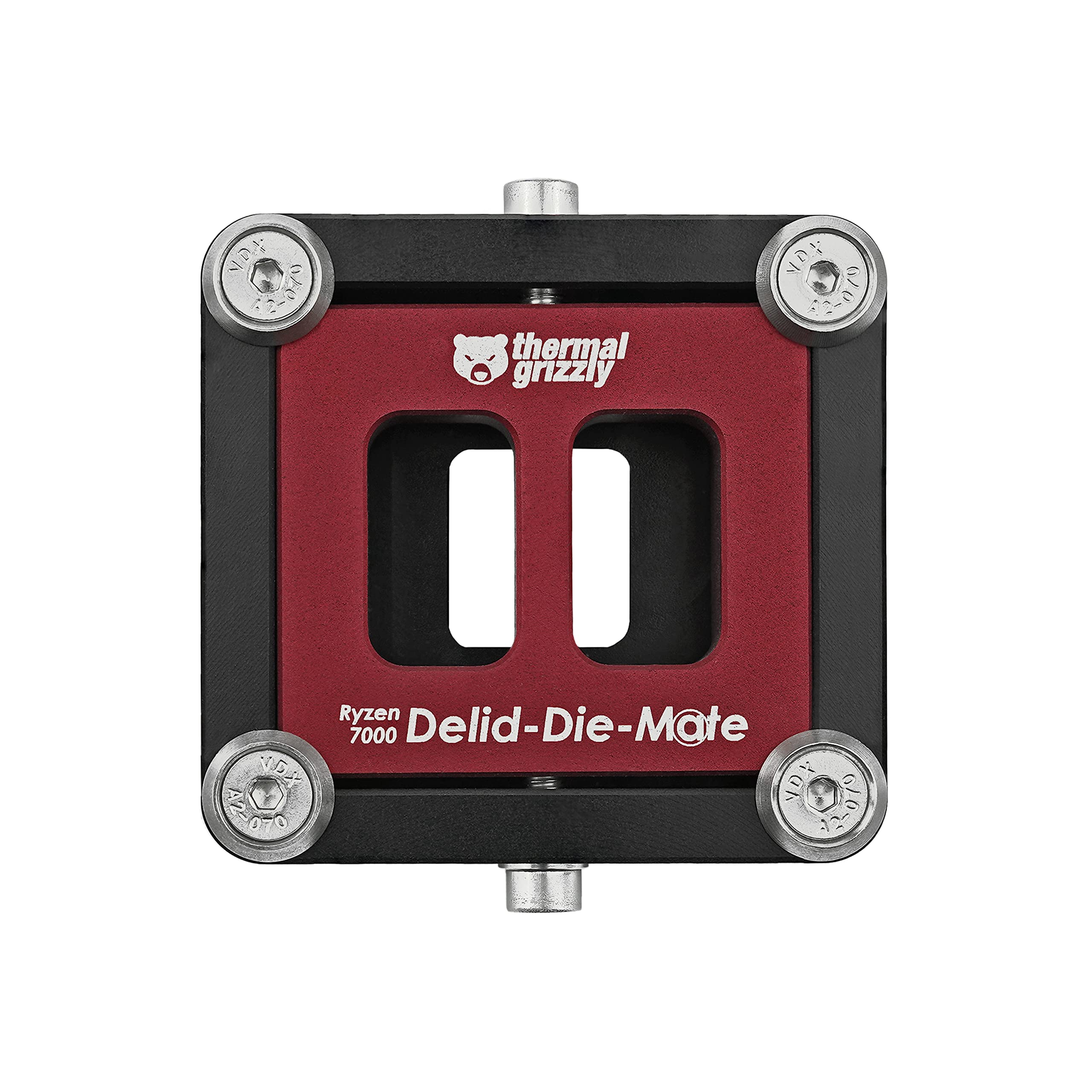

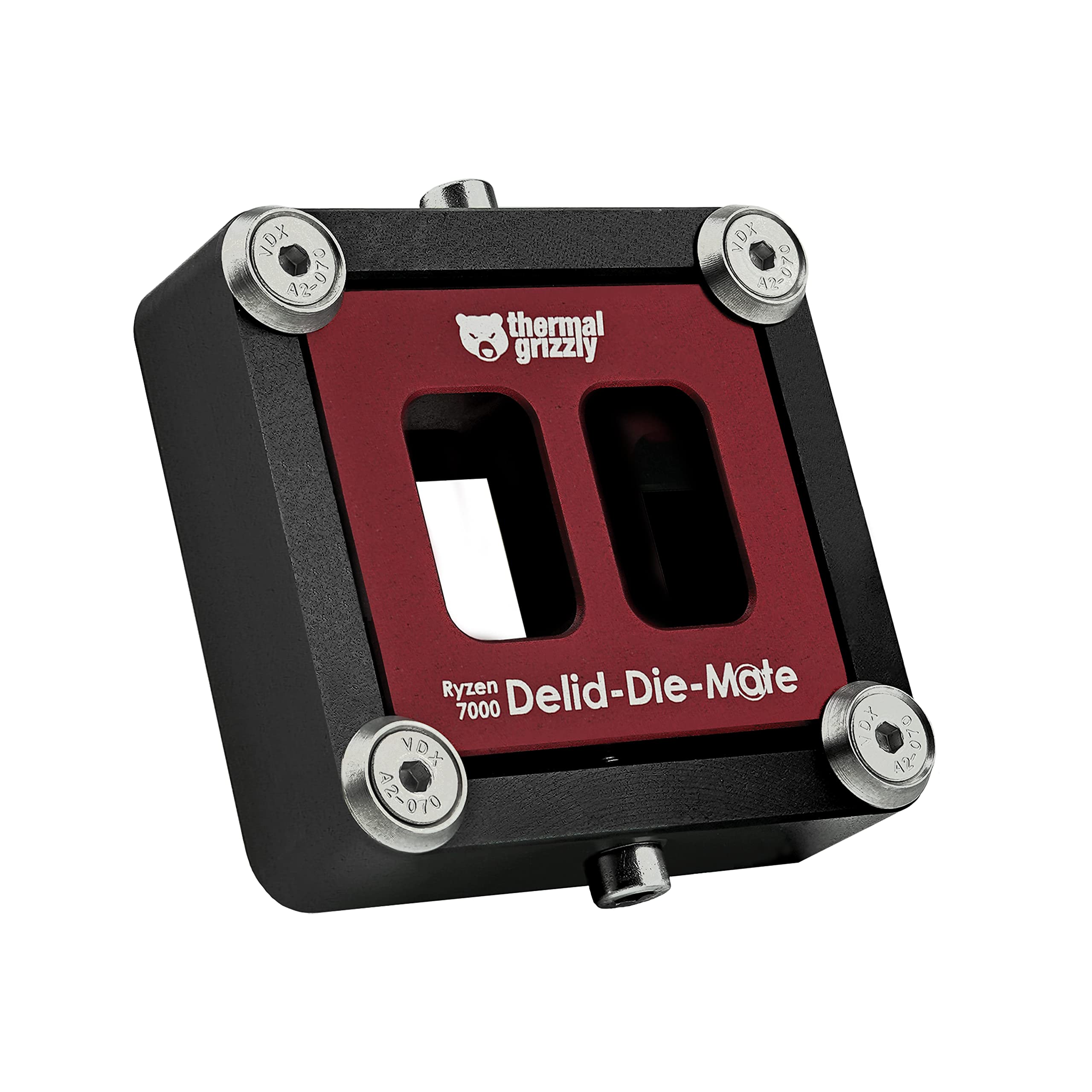

Thermal Grizzly Ryzen 7000 Delid-Die-Mate The Ryzen 7000 Delid-Die-Mate is a tool for removing the heat spreaders ("delidding") on AMD Ryzen 7000/8X00G/9000 processors. By removing it, direct die cooling is possible, which means that the CPU cooler is mounted directly on the CPU chip. This allows for a significantly optimized heat transfer. Advantage By removing the heatspreader, the CPUs can be cooled via "Direct Die", for example. With the so-called "Direct Die" method, the CPU cooler is mounted directly on the CPU dies and the I/O die of the processor. By omitting the heatspreader in the cooling circuit, a significantly optimised heat transfer from the die to the CPU cooler is possible. Compatibility The Delid-Die-Mate is compatible with: Ryzen 7000 seriesRyzen 8X00G seriesRyzen 9000 series (First tests did not include the 9000X3D CPUs) Removing the heatspreader (“delidding”) of a processor is at your own risk! Damage caused by delidding the CPU is not covered by the manufacturer! Characteristics Compatible with Ryzen 7000/8X00G CPUs Delidding tool Made from aluminium Why "Delidding" & Direct Die Method on Ryzen 7000? Delidding is the process of removing the processor's heat spreader. On unsoldered processors, delidding is usually used to replace the thermal interface material (TIM) between the CPU die and the heat spreader with high-quality thermal paste or liquid metal before the heat spreader is remounted. However, as the Ryzen 7000 processors are soldered, this is not an option as removing the indium solder would create too large a gap between the IHS and CPU dies. Therefore, the Ryzen 7000 CPUs are primarily delidded for possible mounting of the CPU cooler directly on the CPU dies. In the case of Ryzen 7000 CPUs, this would be the I/O die (IOD) and one or two CPU dies (CCDs), so called chiplets. By omitting the heat spreader and mounting the CPU cooler directly on the die, experience shows that temperatures can be reduced by 10-20°C if liquid metal such as Conductonaut is used as TIM. Corresponding tests were carried out by the content creators and Tech-YouTubers Roman "der8auer" Hartung, a professional overclocker and engineer, and Jason "JayzTwoCents" Langevin. These enormous temperature improvements through Direct Die are due, among other things, to the heatspreader of the Ryzen 7000 processors. The heat spreaders for the AM5 platform, introduced with Ryzen 7000, are thicker than older heat spreaders, such as AM4. This was done to make older CPU coolers compatible with AM4 also compatible with the AM5 platform. In addition, the surface area of the Ryzen 7000 heat spreaders is significantly smaller at approx. 910 mm² compared to AM4 with 1,300 mm². Scope of delivery Delid-Die-Mate Ryzen 7000 1x Thermal Grizzly Delid-Die-Mate for Ryzen 7000 processors Manual & Tools 1x Manual 2x Wrenches Bag An airtight sealable and reusable package
